Factory Lead Time

8 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

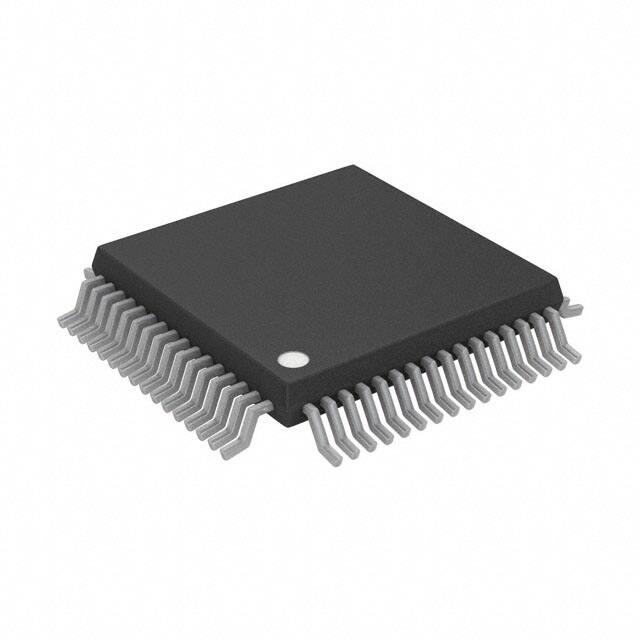

Package / Case

64-TQFP

Number of Pins

64

Data Converters

A/D 16x12b

Number of I/Os

52

Watchdog Timers

Yes

Operating Temperature

-40°C~85°C TA

Packaging

Tray

Series

dsPIC™ 30F

Published

2004

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

64

Termination

SMD/SMT

Terminal Finish

Matte Tin (Sn) - annealed

Terminal Position

QUAD

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

260

Supply Voltage

5V

Frequency

30MHz

Time@Peak Reflow Temperature-Max (s)

40

Base Part Number

DSPIC30F6012A

Pin Count

64

Operating Supply Voltage

5V

Interface

CAN, I2C, SPI, UART, USART

Memory Size

144kB

Oscillator Type

Internal

Nominal Supply Current

74mA

RAM Size

8K x 8

Voltage - Supply (Vcc/Vdd)

2.5V~5.5V

uPs/uCs/Peripheral ICs Type

MICROCONTROLLER, RISC

Core Processor

dsPIC

Peripherals

AC'97, Brown-out Detect/Reset, I2S, LVD, POR, PWM, WDT

Program Memory Type

FLASH

Core Size

16-Bit

Program Memory Size

144KB 48K x 24

Connectivity

CANbus, I2C, SPI, UART/USART

Bit Size

16

Has ADC

YES

DMA Channels

NO

Data Bus Width

16b

Number of Timers/Counters

5

Address Bus Width

16b

Density

1.1 Mb

EEPROM Size

4K x 8

Format

FIXED-POINT

Number of ADC Channels

16

Number of PWM Channels

8

Number of I2C Channels

1

Number of SPI Channels

2

Height

1.05mm

Length

14mm

Width

14mm

REACH SVHC

No SVHC

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
